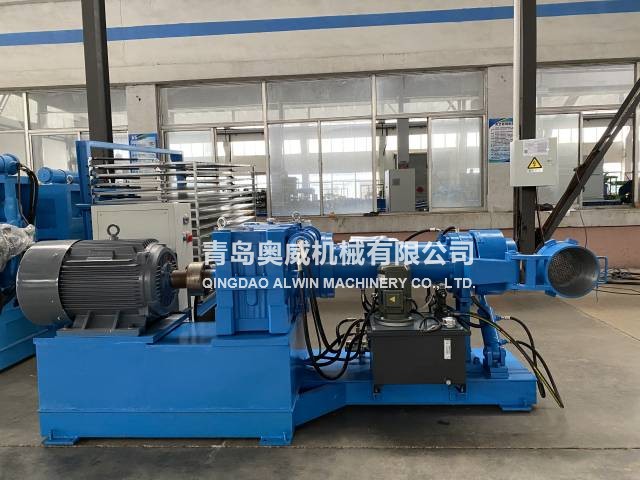

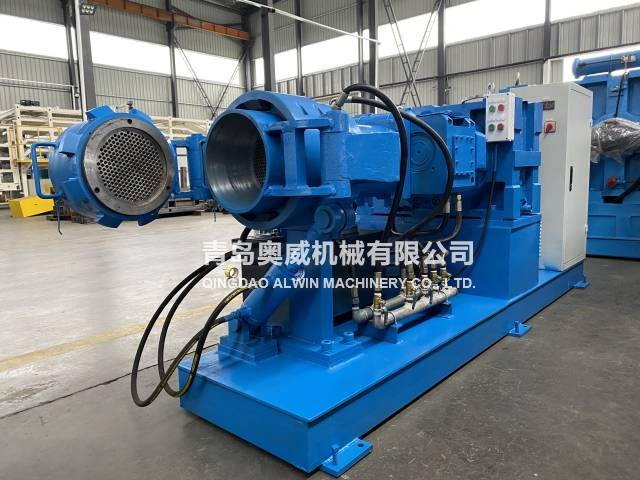

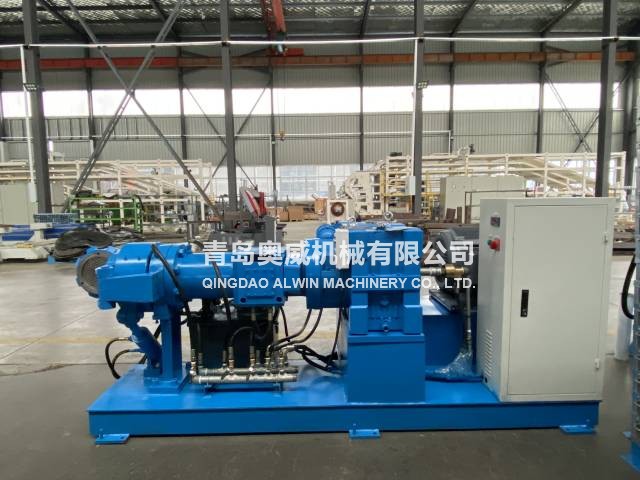

Used to filter the impurities in the rubber.
Used to filter the impurities in the rubber.
| 型號MODLE | XJL-150 | XJL-200 | XJL-250 | XJL-300 |
螺桿直徑(mm) SCREW DIA | 150 | 200 | 250 | 300 |
長徑比L/D RATIO | 5.2 | 5 | 4.2 | 4 |
螺桿轉(zhuǎn)速(r/min) SCREW SPEED | 42.5 | 47.4 | 40 | 32 |
切割裝置轉(zhuǎn)速(r/min) CUTTING EQUIPMENT SPEED | 17 | 16 | 16 | 16 |
電動機(jī)功率(KW) MOTOR POWER | 45 | 75 | 110 | 160 |
蒸汽壓力(Mpa) STEAM PRESSURE | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
冷卻水壓力(Mpa) COOLING WATER PRESSURE | 0.2 | 0.2 | 0.2 | 0.2 |
生產(chǎn)能力(Kg/h) CAPACITY | 400 | 800 | 1200 | 2500 |
外形尺寸(LxWxH) OVERALL DIMENSIONS | 3600x820x1500 | 4229x2120x1493 | 4220x1400x1528 | 4195x1600x1730 |
約重(t) ABOUT WEIGHT | ~4.8 | ~7 | ~9 | ~12 |
