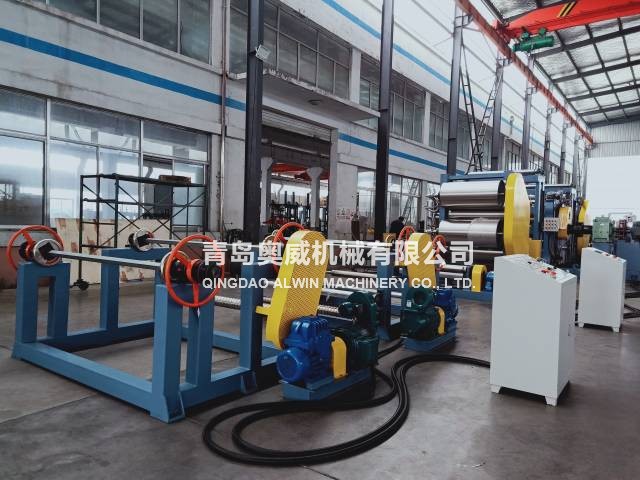

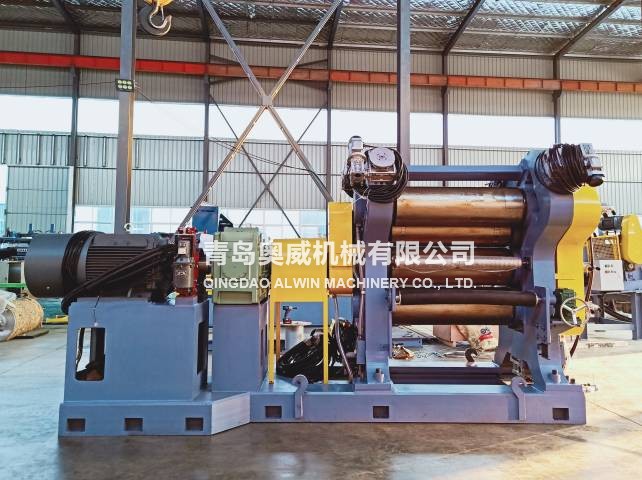

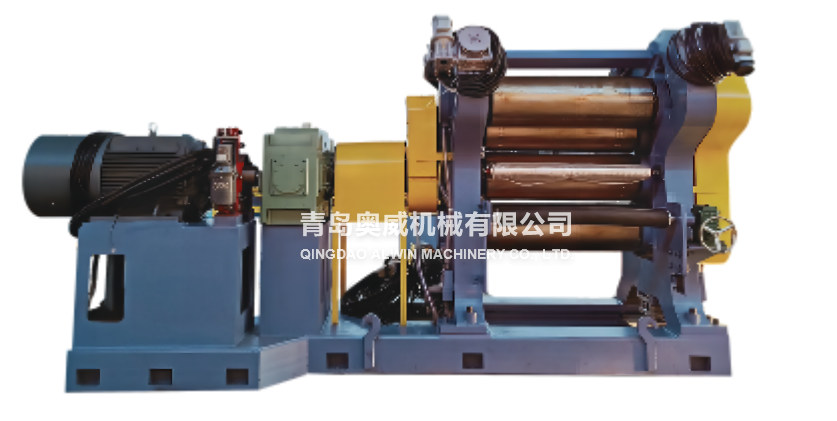

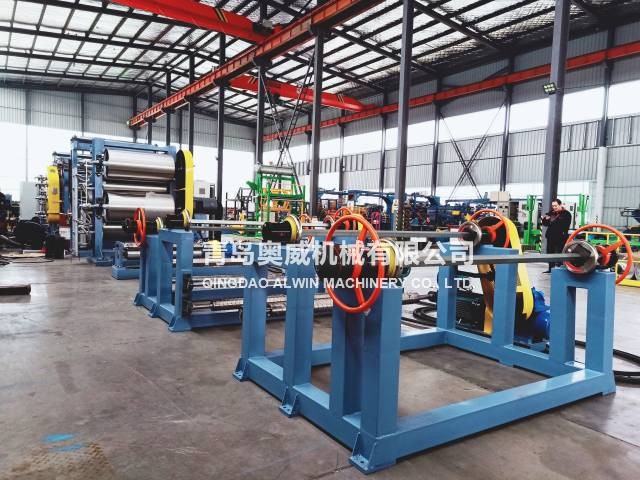

The machine is for rubber and plastics calendering and sheeting, fabric coating and pasting. The calender has two rolls, three rolls, and four rolls. The diameter of the rolls is φ250-φ800mm. The rolls are arranged in I, r, Г, and S types.
The machine is for rubber and plastics calendering and sheeting, fabric coating and pasting. The calender has two rolls, three rolls, and four rolls. The diameter of the rolls is φ250-φ800mm. The rolls are arranged in I, r, Г, and S types.
型號 Model | XY-4S(Г)230×630 | XY-4S(Г)252×720 | XY-4S(Г)300×900 | XY-4S(Г)360×1120 | XY-4S(Г)400×1200 | XY-4S(Г)450×1400 | XY-4S(Г)500×1500 | XY-4S(Г)550×1600 | XY-4S(Г)610×1730 | XY-4S710×1800 | XY-4S(Г)710×2130 | XY-4S(Г)800×2500 | XY-4S(Г)860×2500 | XY-4S(Г)900×2800 | |
輥筒直徑 Roll diameter(mm | 230 | 252 | 300 | 360 | 400 | 450 | 500 | 550 | 610 | 710 | 710 | 800 | 960 | 900 | |
工作長度 Roll working length(mm) | 630 | 720 | 900 | 1120 | 1200 | 1400 | 1500 | 1600 | 1730 | 1800 | 2130 | 2500 | 2500 | 2800 | |
輥筒速比 Roll ratio | 1:1:1:1 | 1:1:1:1 | 1:1:1:1 | 0.73:1:1:0.73 | 1:1.38:1.38:1 | 1:1.5:1.5:1 | 1:1.5:1.5:1 | 1:1.5:1.5:1 | 1:1.4:1.4:1 | 0.5-1可調 Adjustable | 1:1.5:1.5:1 | 0.5-1可調 Adjustable | 0.5-1可調 Adjustable | 0.5-1可調 Adjustable | |
中輥線速度 Middle-roll liner speed (m/min) | 1.1-11 | 2-15.9 | 2-18 | 2-20 | 3-26.9 | 3-26.2 | 3-30 | 3-30 | 4-40 | 4-40 | 4-40 | 4-40 | 4-40 | 4-40 | |
調距范圍 Adjusting nip range(mm) | 0-6 | 0-6 | 0-6 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-30 | 0-15 | 0-30 | 0-30 | 0-30 | |
制品最小厚度 Min. Calendering product thickness(mm) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | |
制品寬度 Calendering product width (mm) | 500 | 580 | 700 | 920 | 1000 | 1200 | 1300 | 1300 | 1500 | 1600 | 1900 | 2200 | 2200 | 2500 | |
電機功率 Motor power(kw) | 15 | 22 | 45 | 55 | 75 | 110 | 132 | 160 | 200 | 90KW×2 110KW×2 | 280 | 132KW×4 | 132KW×2 160KW×2 | 160KW×4 | |
外形尺寸Overall dimensions(mm) | L | 3700 | 4050 | 4400 | 5590 | 6400 | 6900 | 7100 | 7550 | 6910 | 9950 | 7650 | 11400 | 12000 | 12200 |
| W | 1230 | 1360 | 1450 | 1950 | 1650 | 2380 | 2450 | 2500 | 2820 | 3600 | 3400 | 3900 | 4000 | 4200 | |
| H | 1830 | 2050 | 2200 | 2380 | 2490 | 3070 | 3180 | 3400 | 4000 | 4870 | 4680 | 5140 | 5850 | 6200 | |
約重 About weight(t) | ~4.8 | ~5.5 | ~12 | ~16 | ~20 | ~23 | ~36 | ~45 | ~50 | ~110 | ~100 | ~130 | ~180 | ~200 | |
