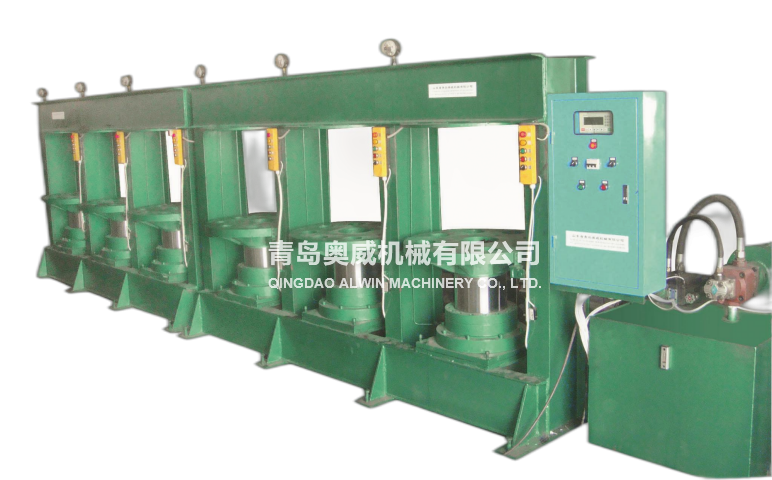

Flap Curing Press
Flap Curing Press
Equipment use

The machine adopts the hydraulic control system for curing small and big flap. Flap curing press is suitable for all kinds of flap curing process for preloading, automatic vent and pressure maintaining sulfide, automatic out of the mold, the mold, automatic lift module, automatic ejection products, and other functions in one body.PLC programmable controller, all abrasive parameters can be stored in the touch screen, convenient operation management.


Flap Curing Press
Flap Curing Press
Flap Curing Press
Flap Curing Press
Flap Curing Press
Flap Curing Press
Parameter
型號TypeLLD-100-6LLD-1500-6
模具最大外徑 Max. O.D. of mould (mm)900900
總壓力 Total pressure (KN)10001500
柱塞直徑 Dia. of plunger (mm)Ф290Ф360
電機功率 Motor power (kw)5.57.5
外形尺寸 Overall dim. (LxWxH) (mm)6500X1200X200012000×1200×2500
