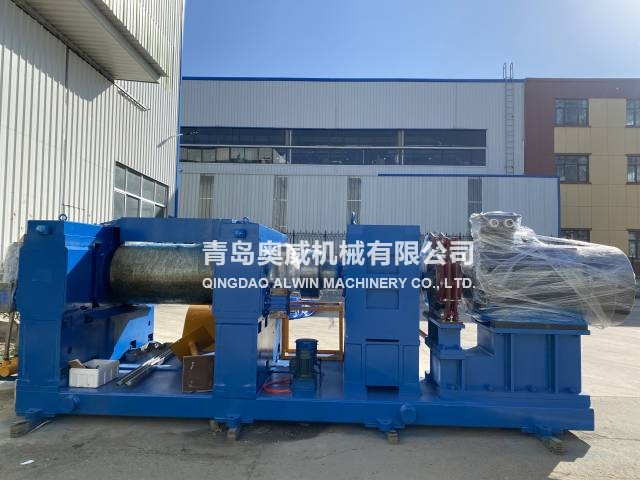

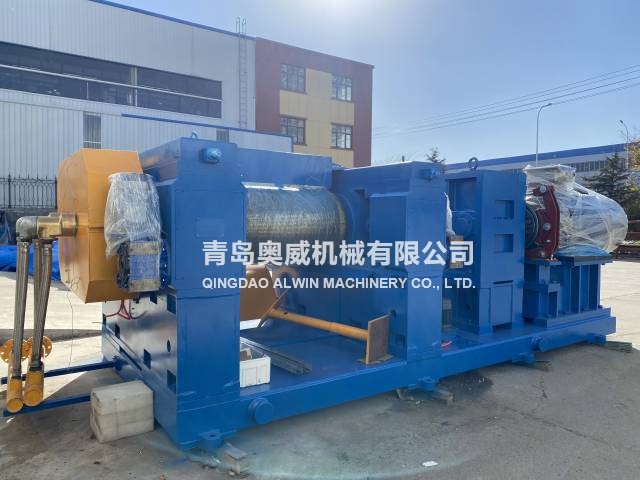

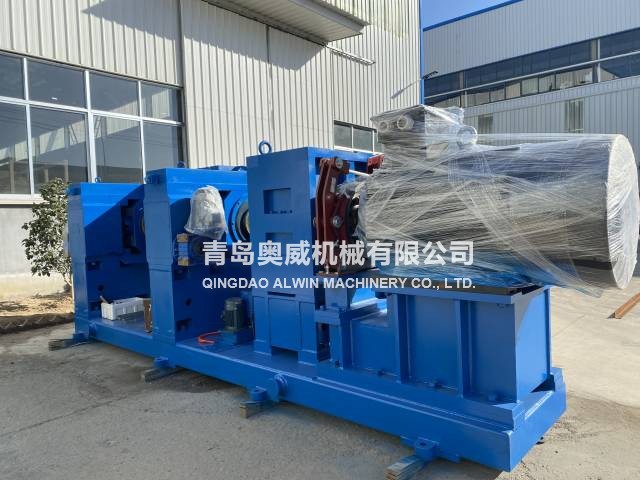

Rubber Crusher
Equipment use

It is mainly used for crushing waste rubber, raw rubber crushing and waste steel wire radial tire crushing.The roller adopts vanadium and titanium alloy cold hard cast iron, the surface is hard and wear-resistant, the rear roller is a groove roll, the inner cavity processing, so that the roll surface temperature is uniform.The machine is equipped with overload protection device, protect the main parts from damage due to overload, equipped with emergency braking, when an emergency occurs, pull the pull rod, the machine will brake immediately, safe and reliable.The transmission system adopts NGW hard tooth surface planetary reducer or human type gear reducer, compact structure, low noise and high efficiency.The machine adopts an integral base or a split base for easy installation.

Rubber Crusher
Rubber Crusher
Rubber Crusher
Rubber Crusher
Parameter
型號(hào)MODLEXKP-450XKP-450BXKP-560XKP-660

前輥工作直徑(mm)

FRONT ROLL DIA

450450560660

后輥工作直徑(mm)

REAR ROLL DIA

450450510
800

輥筒工作長度(mm)

PROLL WORONG LENGHTH

6008008001300

后輥線速度(m/min)

REAR ROLL LINEAR SPEED

18.6521.323.86/29.8678.1

前、后輥線速比

ROLL SPEED RATIO

1: 1.2371:1.431:1.3151:1.58

生產(chǎn)能力T/h

CAPACITY

1.2-1.6(26meshes)1.6-2(26meshes)2.3-2.8(26meshes)1.5±0.1

主電機(jī)功率(KW)

MAIN MOTOR POWER

557590/1106-280

外型尺寸(長×寬×高)

OVERALL DMENSIONS

3800x1850x18005400x1840x17805430x2282x17807160×2200×1825

整機(jī)重量(噸)

ABOUT WEIGHT

≈8≈10≈20≈35
